Custom Salt Fog Test Chamber GB 10587-89 ASTM B117-97 JIS H8502 IEC68-2-11

Name: Custom Salt Fog Test Chamber GB 1058789 ASTM B11797 JIS H8502 IEC68211
Brand: Haida
Price: 1 USD

Buy cheap Custom Salt Fog Test Chamber GB 10587-89 ASTM B117-97 JIS H8502 IEC68-2-11 product

Brand Name : Haida

Model Number : HD-E808

Certification : ISO,CE,.......

Place of Origin : china

MOQ : 1

Price : Negotiation

Payment Terms : D/P, Western Union, MoneyGram

Supply Ability : 300 sets months

Delivery Time : 15 days after receive the order

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Salt concentration : The concentration of sodium chloride 5% or the 5%

Salt Spray test chamber : 270L,selectable

Certificate : ISO9001:2008

Design criteria : CNS, JIS, K5400, Z2371, ASTM

Spray quantity : 1.0~2.0 ml / 80cm2 / hr

Standards : ASTM B117, GB/T2423.17

Brine temperature : 35°C±1°C

Test chamber temperature : NSS ACSS 35±1°C CASS:50±1°C

Temperature precision : ±1°C

PH : 6.5~7.2 3.0~3.2

Contact Now

Custom GB ASTM JIS IEC Salt Spray Corrosion Test Chamber with Touch Screen

HD-E808-60 Salt Spray Chamber.pdf

HD-E808-90 Salt Spray Chamber.pdf

HD-E808-120 Salt Spray Chamber.pdf

HD-E808-160 Salt Spray Chamber.pdf

Product Description:

Salt Spray Chamber adapted to the surface treatment of various materials, including paint, electroplating,

organic and inorganic coating, anode processing, antirust oil and so on, after these anti`corrosive treatment to test the corrosion resistance of their products.

Standards:

GB.10587-89, ASTM.B117-97, JIS H8502, IEC68-2-11, etc.

Specification:

Model

HD-E808-60

HD-E808-

HD-E808-120

HD-E808-160

HD-E808-200

Work-space

volume:

108L

(3.8 cu. ft.)

270L

(9.5 cu. ft.)

600L

(21 cu. ft.)

800L

(28 cu. ft.)

1440L

(50.8 cu. ft.)

Dimensions

Workspace

dimensions

(WxDxH):

60× 40× 45 cm

(23.6" x

15.7" x 17")

90×

60× 50cm

(35" x

23.6" x 19.6")

120×

100× 50 cm

(47" x

39.3" x 19.6")

160×

100× 50 cm

(63" x

39.3" x 19.6")

200×

120× 60 cm

(78.7" x

47" x 23.6")

Exterior

dimensions

(WxDxH):

107× 60× 118 cm

(42" x

23.6" x 46")

141×

88× 128cm

(55.5" x

34.6" x 50")

190×

130× 140 cm

(74.8"

x 51" x 55")

230×

130× 140 cm

(90.5" x

51" x 55")

270×

150× 150 cm

(106"

x 59" x 59")

Performance

Temperature

Range:

RT+5°C ～55°C

(RT+-41°F ～ 131°F)

Temperature

Fluctuation:

± 0.5° C

Temperature

Gradient:

± 2° C

Spray

Quantity

1.0~2.0 ml / 80cm2 / hr

Power

AC220V, 1Ø ,30A

Safety

Protection

Multiple Safety Protection Devices

Accessories

Testing Salt/ Measuring tank/ Equipment

each 1 set

Standard

CNS: 3627, 3385, 4159, 7669, 8886; JIS: D0201, H8502,

K5400, Z2371; ISO: 3768, 3769, 3770; ASTM: B117, B268,

MIL-STD-810F

Characteristics:

Has insufficient water feature can automatically replenish the water level.

Precision glass nozzle (PYREX) 4000 to ensure that no obstruction between crystallization.

Control device are on the same board, easy to operate, and can glance for.

With dual over-temperature protection, water shortage alert, ensure safe use.

Digital display temperature is taken, SSR control, accuracy of 0.1 ℃.

Mining trough direct steam heating method, heating speed, shorten the standby time.

Spray tower with conical diffuser, a guide ring fog, adjust the volume, and even off the fog and other

functions.

Operation interface:

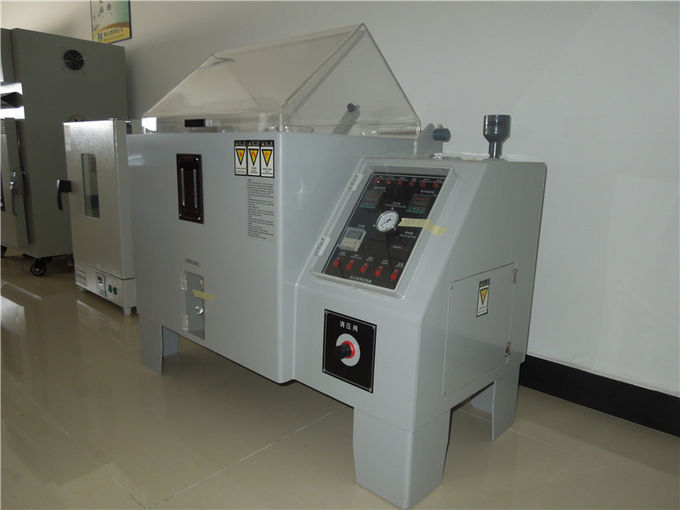

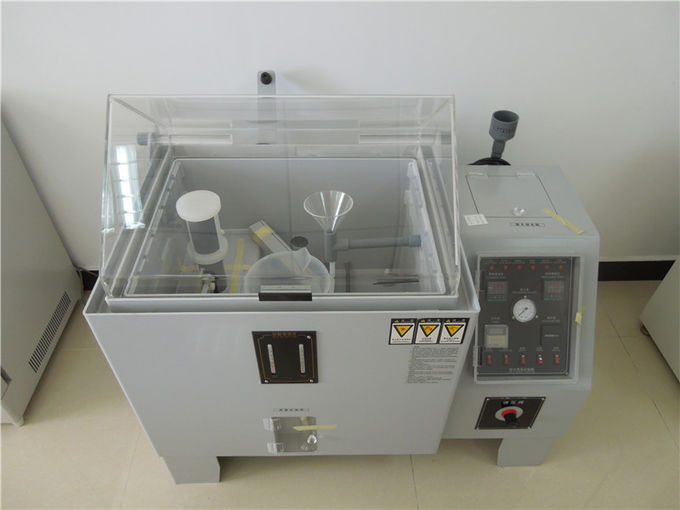

Custom Salt Fog Test Chamber GB 10587-89 ASTM B117-97 JIS H8502 IEC68-2-11
